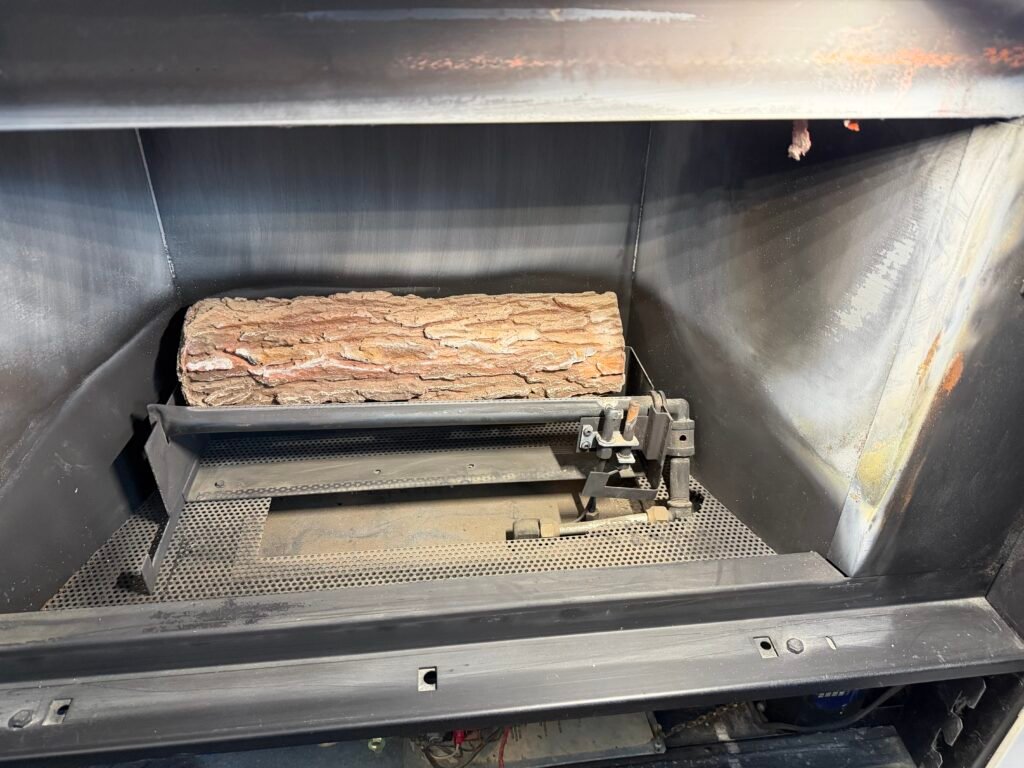

Gas Fireplace Thermopile Problems? Symptoms, Testing & Repair
A weak thermopile can let the pilot stay lit while the main burner becomes unreliable, fails to open, or shuts off as the fireplace warms. But the thermopile should not be blamed just because the fireplace is intermittent. Pilot flame quality, wiring resistance, wall switches, receivers, safety controls, and the gas valve all affect the same millivolt circuit.
Quick Answer: What Does a Thermopile Do?
A thermopile uses heat from the pilot flame to generate a small DC millivolt signal that helps power the fireplace’s gas-valve circuit. When output becomes weak, the pilot may remain on, but the main burner may not start reliably, may work only when cold, may shut off after several minutes, or may fail when the wall switch or remote adds load to the circuit.
Main burner still may fail if thermopile output is weak.
Millivolt output can drop under load or when hot.
Receiver may command correctly while valve lacks usable voltage.
Thermopile, wiring and valve should be tested together.
Table of Contents
How a Gas Fireplace Thermopile Works
A thermopile is essentially a group of thermocouple junctions connected together. The pilot flame heats the thermopile, and the temperature difference generates a small electrical voltage. In many older millivolt fireplaces, that voltage helps operate the main burner gas valve without ordinary household power.
The system is simple, but not isolated. Thermopile output has to travel through wiring, switches, receiver contacts, safety controls, and the gas valve. Every connection creates some electrical resistance. A thermopile that looks acceptable with no load may still fail once the complete control circuit is connected.
Common Symptoms of a Weak Thermopile
Pilot Stays Lit, but Burner Will Not Start
The pilot circuit may be healthy enough to remain on while the main valve circuit lacks sufficient voltage under load.
Fireplace Works Only After Several Tries
Marginal voltage or resistance in the control circuit can make operation inconsistent.
Burner Shuts Off After Warming
Output can decline when the thermopile, valve, or electrical connections become hot.
Wall Switch Works Intermittently
A weak millivolt system becomes very sensitive to resistance from old switches and connections.
Remote Receiver Clicks but Burner Does Not Light
The receiver may close the circuit correctly while available voltage is still too low to open the valve.
Works Better With Pilot on Longer
A marginal thermopile may generate more usable voltage after extended heating, but this pattern still requires diagnosis.
Why Thermopile Output Becomes Weak
1. Dirty or Weak Pilot Flame
If the pilot flame does not heat the thermopile correctly, the component cannot generate its intended output. Dust, lint, pilot-orifice restriction, or poor flame shape can all reduce heating.
2. Aging Thermopile
Thermopiles can lose output with age and repeated heat cycles. The decline is often gradual, which explains why many fireplaces become unreliable before they fail completely.
3. Poor Flame Contact
The pilot may be lit but positioned so the hottest part of the flame does not properly engulf the thermopile.
4. Corroded or Loose Connections
Low-voltage millivolt circuits are sensitive to resistance. Slight corrosion or a loose terminal that would barely matter in a 120-volt circuit can cause real trouble here.
5. Worn Wall Switch
Old wall-switch contacts can add enough resistance to keep a marginal fireplace from opening the main gas valve.
6. Remote Receiver Resistance
Battery receivers, relay contacts, and connectors become part of the millivolt path. A weak receiver or poor contacts can mimic thermopile failure.
7. Gas Valve Coil or Magnet Problem
A thermopile can generate usable voltage while a worn gas valve requires more current than the system can reliably supply.
8. Safety Switch Resistance
Spill switches, high-limit controls, and other safety devices may be wired in series. Every connection must remain electrically sound.
9. Heat-Damaged Wiring
Terminals and insulation near hot fireplace components can deteriorate, increasing resistance or causing intermittent contact.
10. Wrong Replacement Part
A physically similar thermopile is not automatically the correct part. Length, mounting, lead configuration, output characteristics, and appliance approval matter.
How a Thermopile Is Properly Tested
Testing needs to answer more than “Is there voltage?” The useful question is whether the thermopile can maintain enough output while the fireplace control circuit is actually asking the gas valve to operate.
Open-Circuit Test
The thermopile is heated by the pilot and measured without the full operating load. This establishes its available no-load output.
Closed-Circuit or Loaded Test
Voltage is measured while the control circuit is connected and calling for the burner. This shows how the system behaves under real operating conditions.
Voltage-Drop Testing
Switches, receivers, safety controls, wiring, and terminals can be checked for unwanted voltage loss. This is often where an “apparently bad thermopile” turns out to be an old wall switch or poor connection.
Safe Checks You Can Perform
- Observe the pilot flame: note whether it is stable and properly contacting the thermopile.
- Check remote batteries: weak receiver batteries can create symptoms that look electrical or millivolt-related.
- Try the normal wall switch or approved control: note whether one control works more reliably than another.
- Record when failure occurs: cold startup, after warming, windy weather, or only after long operation.
- Look for soot or abnormal flame: these point beyond a simple thermopile issue.
Do not do this
- Do not bypass safety switches.
- Do not jump the gas valve terminals as a casual test.
- Do not adjust pilot gas or main gas pressure.
- Do not replace the thermopile with an unapproved “close enough” part.
- Do not continue operating a fireplace with delayed ignition, gas odour, heavy soot, or unstable flame.
Thermopile Symptoms Can Overlap With Safety Problems
Pilot outages, delayed ignition, excessive soot, unusual odours, and abnormal flame behaviour should not be treated as a simple “sensor problem.” FortisBC recommends licensed gas service when those warning signs appear and notes that fireplace service should include inspection of the burner, gas valve, ignition system, gaskets, venting, and air openings. citeturn589436search0
Regency also identifies thermopiles and thermocouples as safety-related fireplace components and states that replacement should be performed by an authorized, factory-trained dealer. citeturn589436search1
How We Diagnose a Suspected Thermopile Problem
1. Inspect the Pilot Flame
We verify pilot size, direction, stability, and how it contacts the thermopile and thermocouple.
2. Inspect Wiring and Control Connections
Loose terminals, corrosion, heat-damaged wiring, wall-switch condition, receiver contacts, and safety switches are checked.
3. Measure Thermopile Output
Open-circuit and loaded readings are compared with the fireplace manufacturer’s service information.
4. Measure Voltage Loss Through the Circuit
We identify where usable millivoltage is being lost before the signal reaches the gas valve.
5. Evaluate the Gas Valve
If thermopile output and the control circuit are healthy, the valve itself may be the reason the burner does not open reliably.
6. Repair and Full-Cycle Test
After repair, the fireplace is tested from cold start through full operating temperature to confirm reliable burner operation.
Common Repairs for Thermopile-Related Problems
Pilot Cleaning
Restore a clean, stable flame when contamination prevents proper sensor heating.
Thermopile Replacement
Replace the approved component when measured output is genuinely weak.
Connection Repair
Correct corroded, loose, or heat-damaged millivolt wiring and terminals.
Wall Switch / Receiver Repair
Reduce unwanted resistance from worn switches or failing receiver contacts.
Pilot Assembly Replacement
Replace the approved pilot assembly when the hood, sensor mounting, tubing, or related parts are damaged.
Gas Valve Diagnosis
Replace the valve only after thermopile output and the complete control circuit test correctly.
Gas Safety and Licensed Work in British Columbia
Thermopile diagnosis often involves regulated gas-appliance components such as the pilot, burner, gas valve, and safety circuit. Technical Safety BC notes that permits are required for many gas installations and alterations, and when a licensed contractor is hired, the contractor generally applies for the permit on the homeowner’s behalf. citeturn589436search3
For gas-appliance work, use an appropriately licensed contractor and follow the manufacturer’s service information rather than generic component-replacement advice.
Related Fireplace Guides
- Gas Fireplace Pilot Light Won’t Stay Lit — pilot flame, thermocouple and safety-circuit issues.
- Gas Fireplace Turns Off After a Few Minutes — intermittent shutdown after warm-up.
- Gas Fireplace Remote Not Working — receiver and control-circuit troubleshooting.
- Gas Fireplace Won’t Turn On — broader ignition and burner troubleshooting.
- Fireplace Repair Vancouver — professional fireplace diagnosis and repair.
Why Choose SkyLimit Heating for Thermopile Diagnosis?
- Licensed and insured gas service
- Millivolt diagnosis before parts replacement
- Pilot, thermocouple, thermopile, receiver, switch and valve troubleshooting
- Service for major gas fireplace brands
- Serving Metro Vancouver and the Fraser Valley
Gas Fireplace Thermopile FAQ
What does a thermopile do in a gas fireplace?
A thermopile converts heat from the pilot flame into a small DC millivolt signal used by many fireplaces to operate the main burner gas-valve circuit.
Can the pilot stay lit with a bad thermopile?
Yes. In many systems, the thermocouple helps maintain the pilot while the thermopile helps power the main burner circuit, so the pilot can remain lit even when the main burner is unreliable.
What are signs of a weak thermopile?
Common signs include a pilot that stays lit while the main burner fails, intermittent burner operation, shutdown after warm-up, or a fireplace that becomes very sensitive to wall-switch or receiver resistance.
Can a dirty pilot cause low thermopile voltage?
Yes. If the pilot flame is weak, restricted, unstable, or not properly contacting the thermopile, the component may not receive enough heat to generate normal output.
Can a wall switch mimic a bad thermopile?
Yes. Worn or corroded switch contacts can add resistance to a low-voltage millivolt circuit and prevent a marginal system from opening the gas valve.
Can a remote receiver cause the same symptoms?
Yes. Receiver relay contacts, weak receiver batteries, wiring, or internal resistance can reduce the usable voltage reaching the gas valve.
Should I test a thermopile with a multimeter myself?
Basic electrical measurement may appear simple, but interpreting readings correctly requires the fireplace wiring diagram, manufacturer specifications, and knowledge of safe gas-valve circuits. Professional testing is safer and more useful.
Does every gas fireplace have a thermopile?
No. Many newer electronic ignition fireplaces use different flame-sensing and control systems. Check the model and owner’s manual before assuming a thermopile is present.
Should I replace the thermopile and thermocouple together?
Not automatically. Each component should be diagnosed based on the fireplace design and measured performance. Some pilot assemblies combine components, while others allow separate replacement.
Do you repair thermopile problems in Vancouver?
Yes. SkyLimit Heating diagnoses pilot flame, thermocouple, thermopile, wall-switch, receiver, wiring, safety-control and gas-valve problems across Metro Vancouver and the Fraser Valley.
Before Replacing the Thermopile, Test the Whole Circuit
If your pilot stays lit but the burner will not start reliably, SkyLimit Heating can test the pilot flame, thermopile output, wiring, wall switch, receiver and gas valve to find the actual failure.
